• Electric Brake
• 3000mm in length
• Rotatable Dust Nozzle
• Allows extremely long straight cuts
• Prevents guide rails from shifting
• Pack of 2 clamps

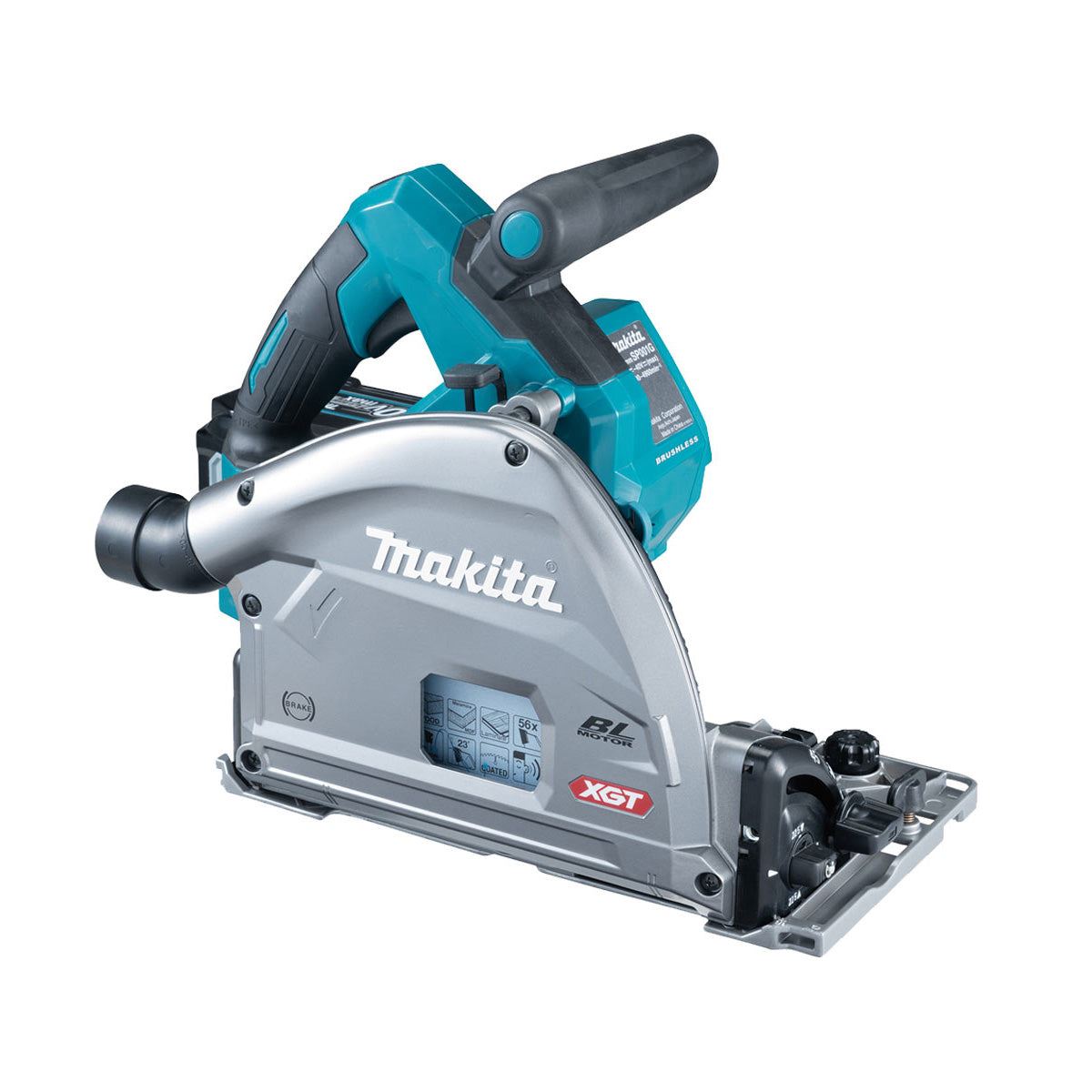

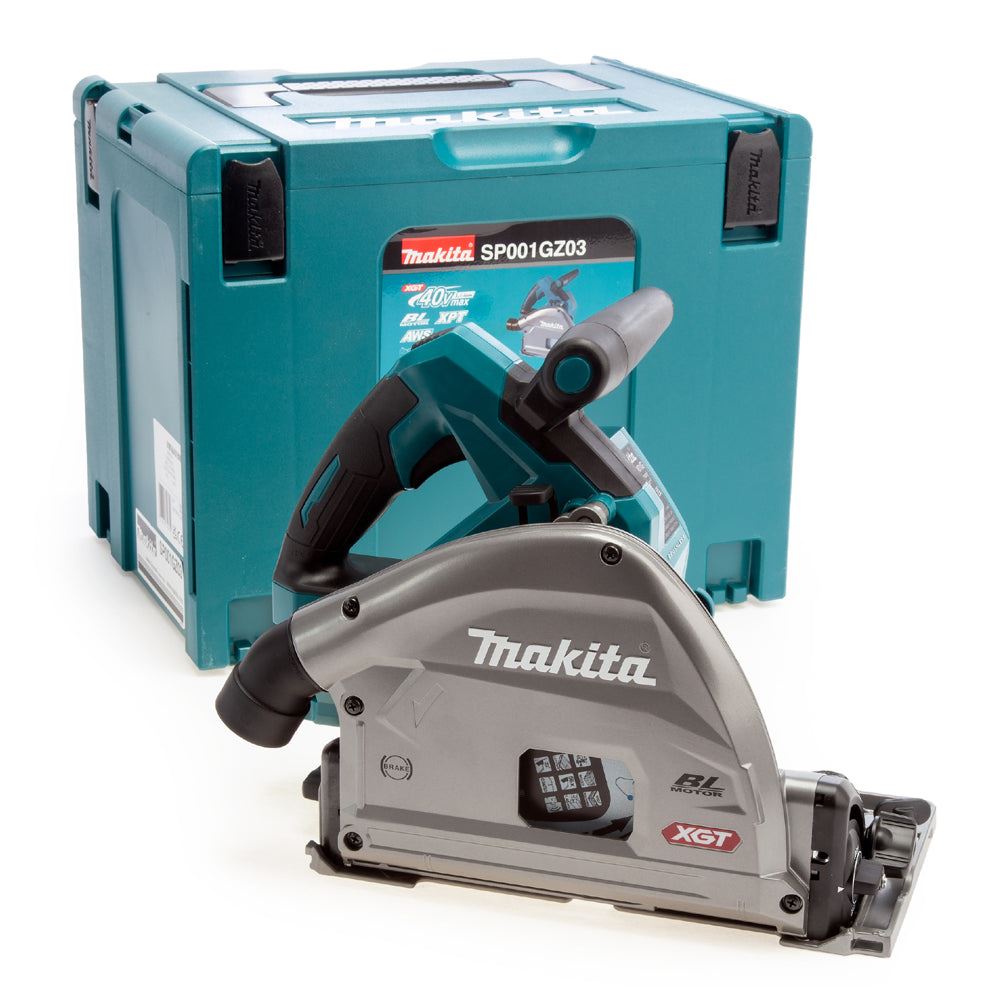

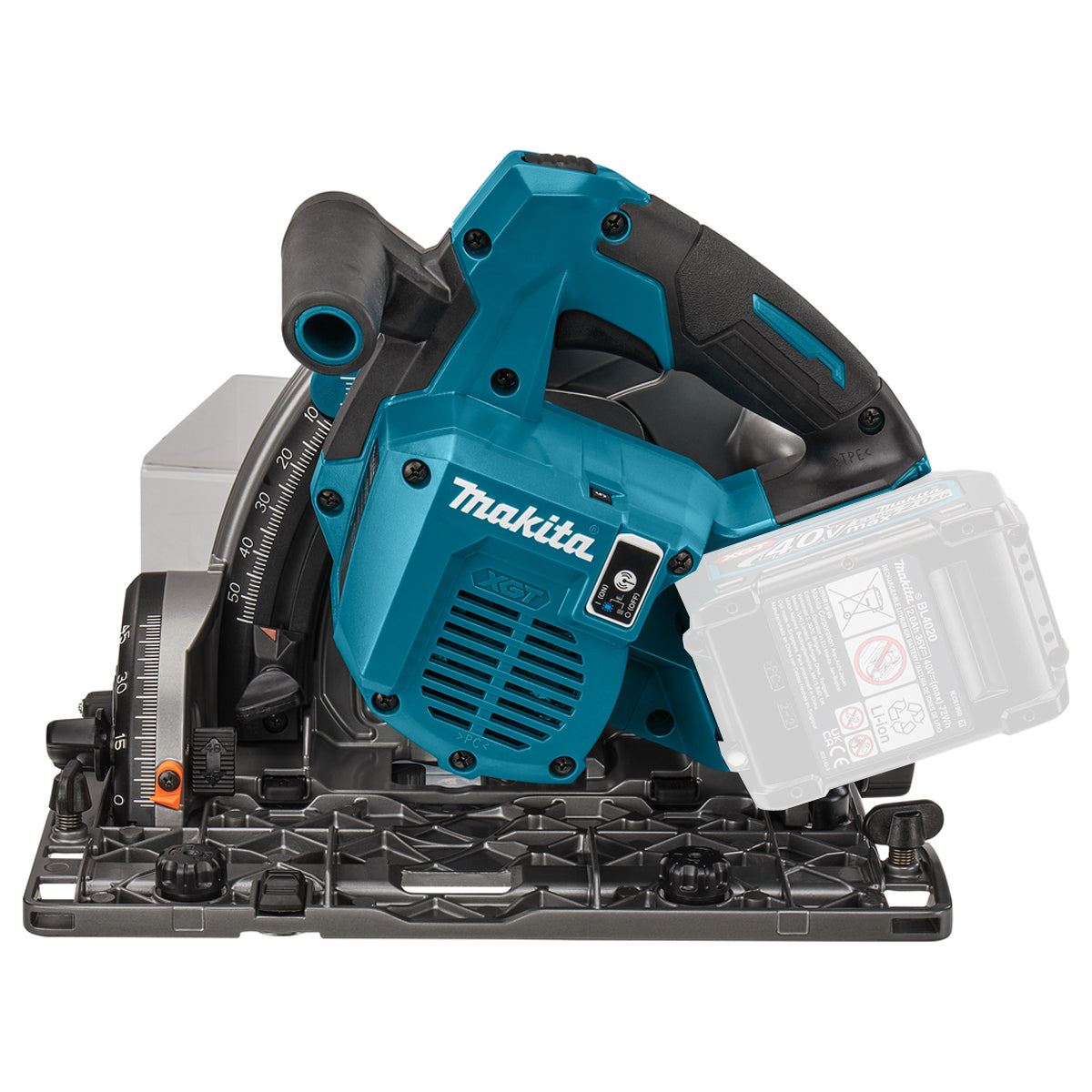

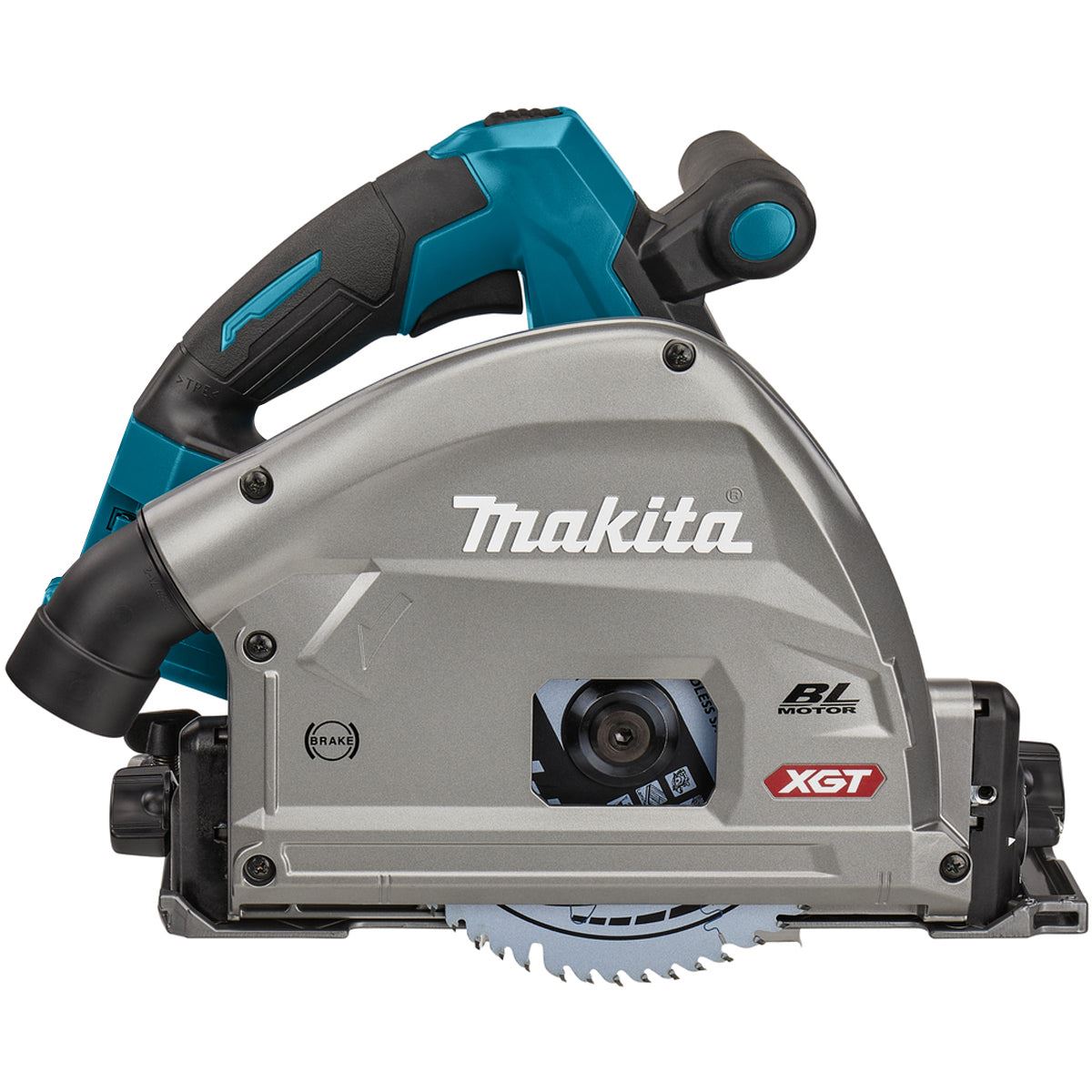

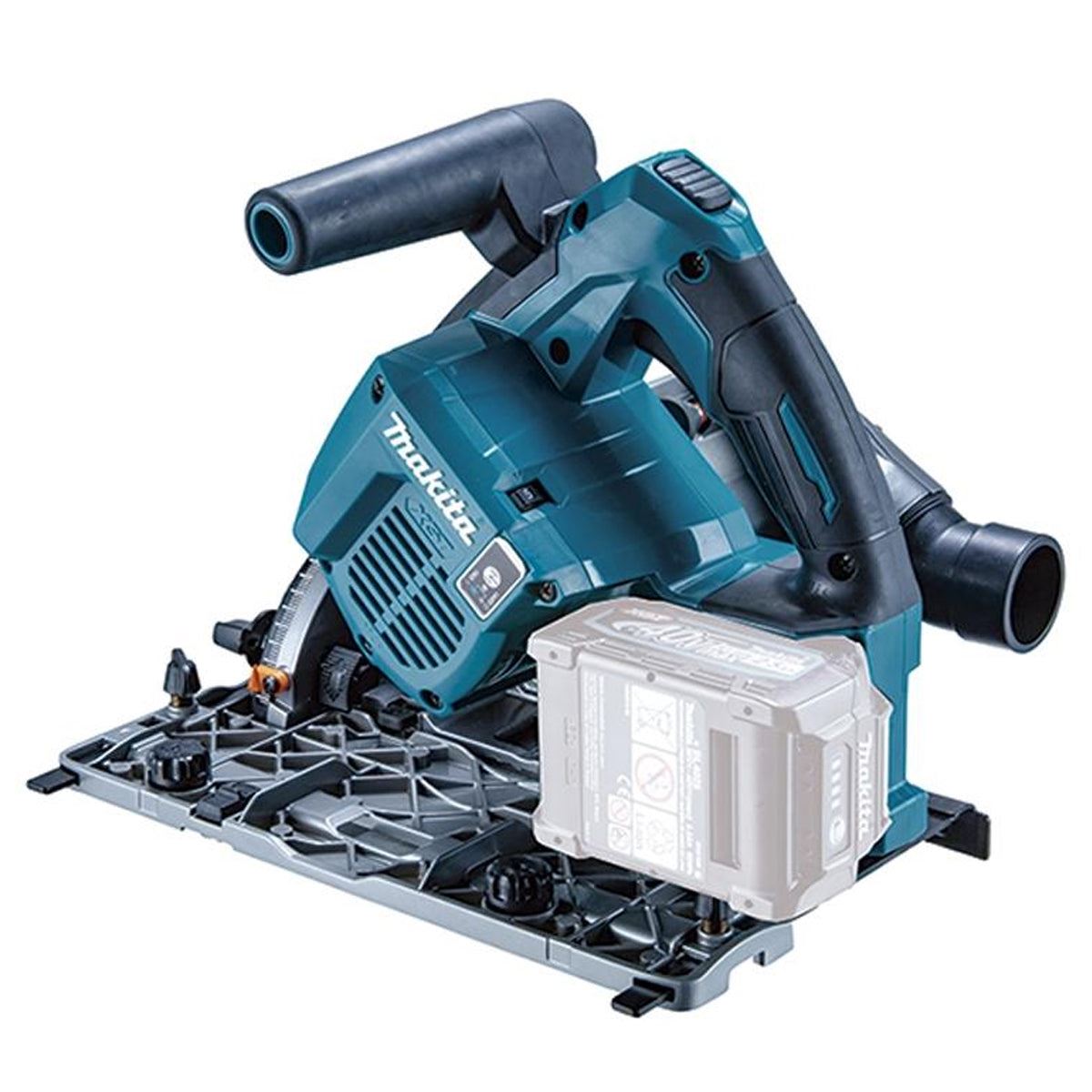

Makita SP001GZ03 40Vmax XGT 165mm Brushless Plunge Saw with 1 x 3000mm Guide Rail & Clamp

Features:

Makita SP001GZ03 Brushless Plunge Saw :

Auto-Start Wireless System (AWS) - connects to compatible dust extractors with Bluetooth.
The dust extractor automatically runs while the switch is on.
Electric brake
Variable speed
Soft start
Constant speed control
Brushless motor
Depth stopper for splinter free cutting
Bevel capacity: 1 to 48 degrees
Guide rail (option) is attachable without adapter
Positive stops at commonly used bevel angles (22.5°, 45°)
Rotatable dust nozzle: Two leaf springs enable to twist and lock the nozzle with a click in order to reduce unexpected rotation

Makita 194367-7 Guide Rail:

Replaceable splinter guard
Anti-slip strips on the underside
Top running strips for a smooth guide
Can be paired with another guide rail with a connector (not included)
Suitable for Makita Plunge saws, circular saws, jigsaws and routers

Makita 194385-5 Clamp Set:

Holds guide rails or material firmly in place, for use with Makita SP6000J/J1 Plunge Saw
Use with guide rails 194368-5 or 194367-7
Guide rail clamp set (2-piece)
For use with Makita 6-1/2" Plunge Circular Saw (SP6000J/J1) and Guide Rail (sold separately
Prevents guide rails from shifting when placed on smooth materials
Clamp slides into channels located on underside of guide rail

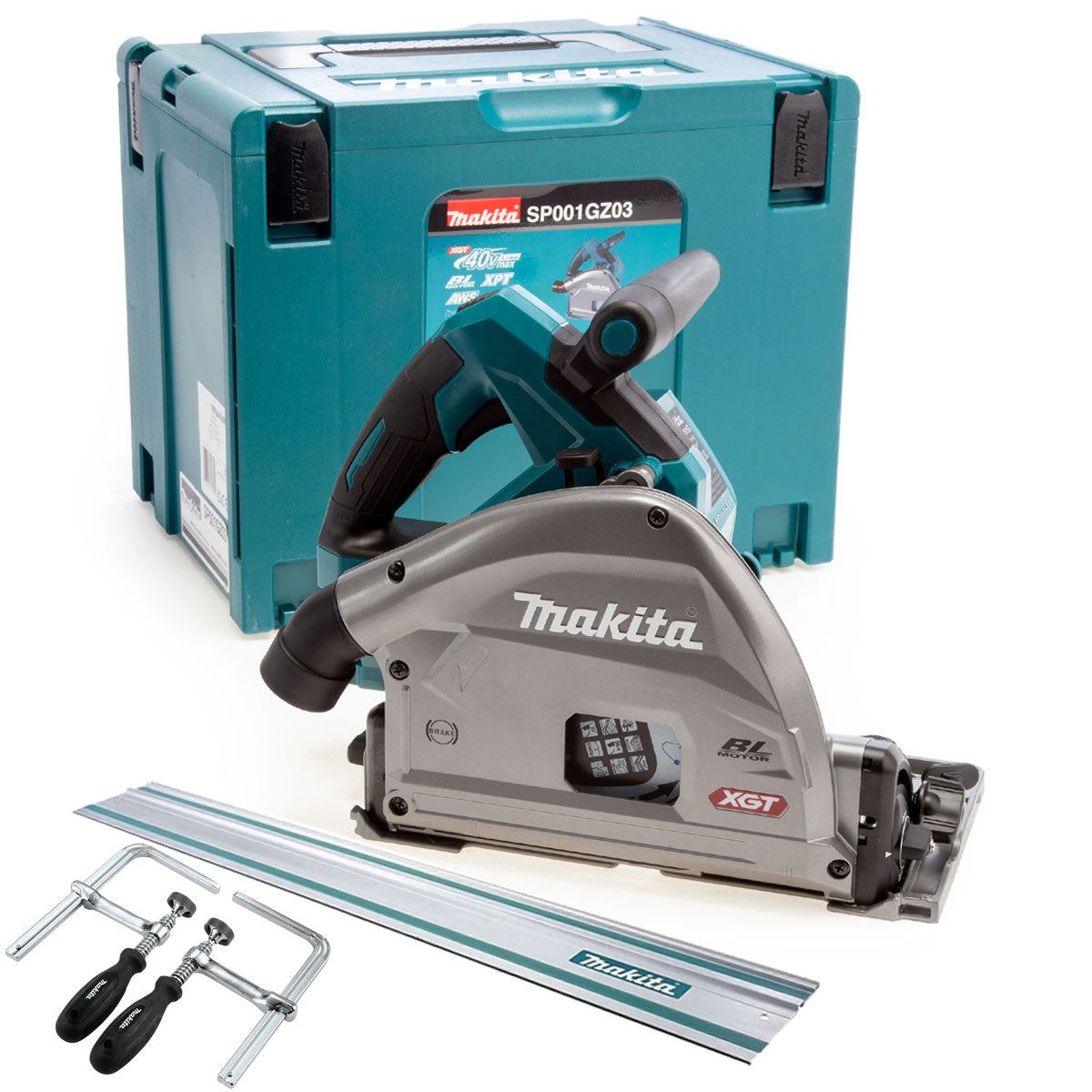

Comes With:

1 x 198897-0 Wireless Adapter Wut01
1 x 783203-8 Hex Wrench 5 mm
1 x 821552-6 Makpac case (4)
1 x Makita 194367-7 Guide Rail
1 x Makita 194385-5 Clamp Set

Product Specification:

Makita SP001GZ03 Brushless Plunge Saw :

Part Number: SP001GZ03
Nominal Battery Voltage: 40 V
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
No load speed: 2500 - 4900 min⁻¹
Max. Cutting Depth at 48°: 38 mm
Max. Cutting Depth at 45°: 40 mm
Sound Power Level (LWA): 100 dB(A)
Sound Pressure Level (LpA): 89 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Vibration Level (3 axes): ≤ 2,5 m/s²
Vibration Uncertainty (K Factor): 1,5 m/s²
Product Dimensions (L x W x H): 375 x 221 x 271 mm
Tool weight with battery (EPTA): 4,4 - 5,6 kg
Capacity 90°: 56 mm
Blade Diameter: 165 mm
Bore Size (Arbor Diameter): 20 mm
Product net weight: 3,7 kg
Vacuum cleaner connection Ø in / out: 35/43 mm

Makita 194367-7 Guide Rail

Part No: 194367-7
Length: 3000mm

Makita 194385-5 Clamp Set

Part No: 194385-5
Pack Qty: 2 Clamps

**images for illustrative purposes only – please refer to description and specification for full details of product**
